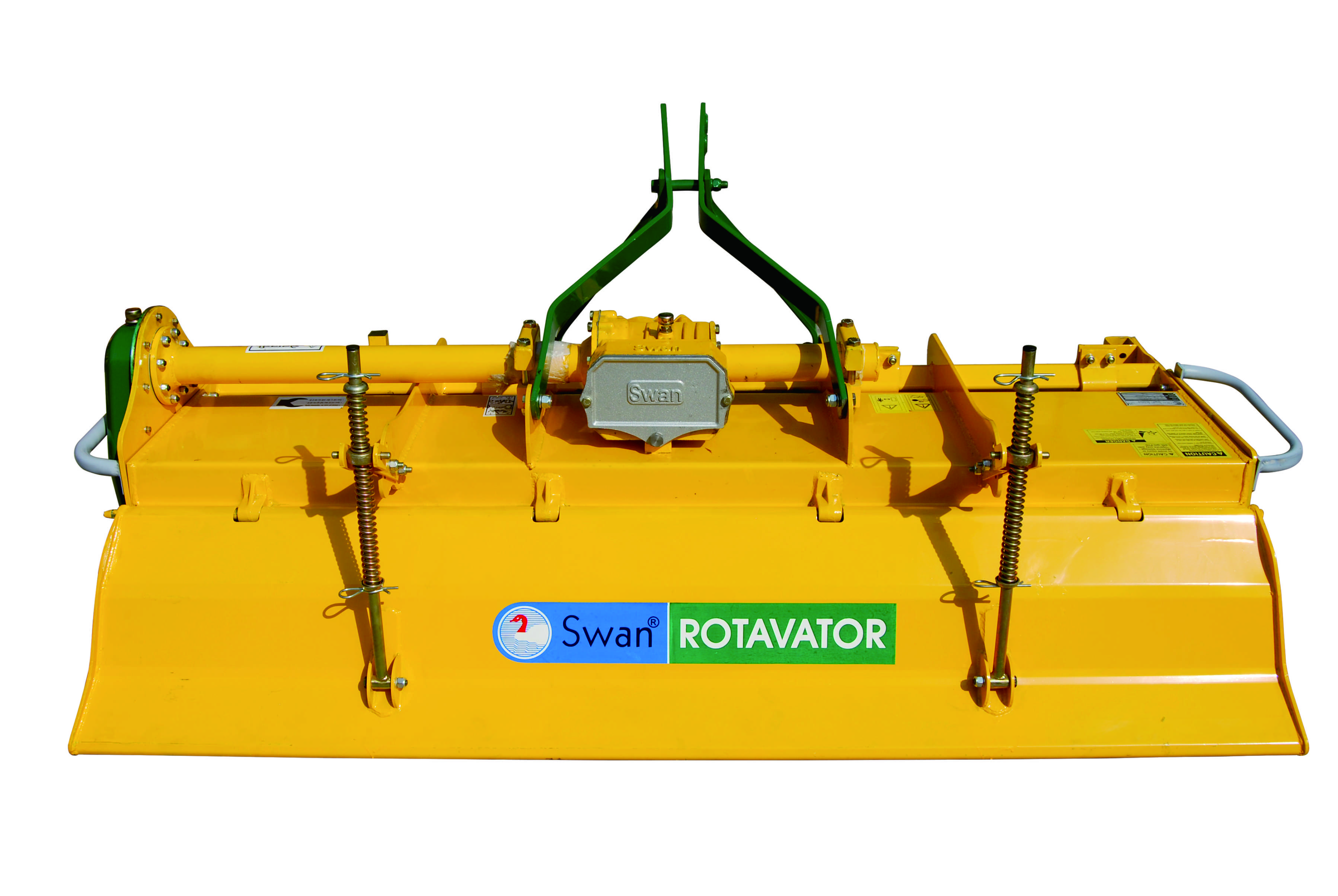

JET SERIES ROTARY TILLER

JET SERIES ROTARY TILLER
JET SERIES ROTARY TILLER
JET SERIES ROTARY TILLER
JET SERIES ROTARY TILLER

Swan AgroTwo furrow hydraulic reversible plough can handle the toughest ploughing job with outstanding penetration performance. The under frame and unit-to-unit clearance are adequate to cope with trashy conditions. This facility has safety bolt protection which prevent breakage of mould board or tynes in case of any obstacles comes during ploughing operation.

Available in 2 Furrow.

Enquiry
JET SERIES ROTARY TILLER

Features

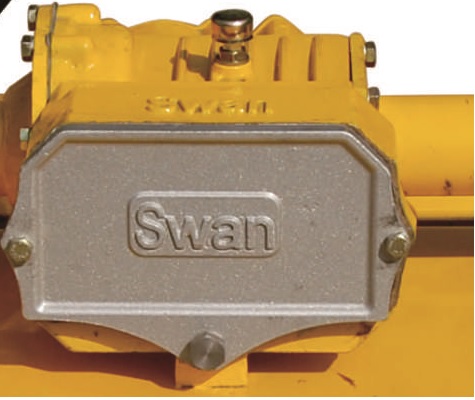

  • Specially designed Leakproof Aluminium Casting Gear Box.
  • Baldes are Tempered & made of Boron Steel from Italy. Available with L-Type or C-Type blades- Interchangeable.
  • Export Quality Heavy Duty Gear Box
  • Nut and Bolt is made of High Tensile Steel (10.9 Grade).
  • Side Transmission is driven through Gears providing Smooth Drive & Longer Service Life.
  • Save Fuel & Time.
  • Available from 1.25 mrt to 2.00 mtr size for 30 H.P to 60 H.P tractors.
  • Heavy Duty PTO Shaft with Shear Bolt for overload protection.

Advantages

  • Recommended for Sandy Soil operation & Heavy operation.
  • By combining disking, cultivating and planking, rotavator prepares soil quickly for sowing.
  • Breakup the hard and dense clod and lumps of soil.
  • Rotary Tiller has powerful Gear Type Transmission which is more powerful than chain type rotary tiller .
  • Rotary Tiller helps in reducing tractor’s wear and tear, save fuel & time, maintain the moisture of the soil.
  • Rotary tiller prepares all type of soil – Wet & Dry.
  • Stubbles and residue of previous crop is chopped into pieces and thoroughly mixed in soil to form organic manure.
  • Rotary Tiller is extremely helpful in Sugar Cane, cotton, Paddy and Vegetables cultivation.
  • Heavy Duty PTO Shaft with Shear Bolt for overload protection.
JET SERIES ROTARY TILLER

Technical Specifications

Description/ Models NSEJT RT 125 NSEJT RT 150 NSEJT RT 175 NSEJT RT 200
Overall Width (mm) 1550 1800 2050 2300
Tillage Width (mm) 1250 1500 1750 2000
Tillage Depth (mm) 120 - 150
Gear Box Single Speed/ Multi - Speed
Side Transmission Gear Drive
PTO Speed (Rpm) 540/1000
No. of Blades 30 36 42/48 48/54
Blade specifications L type 5" L type 5" L type 5" L type 5"
Weight(Kgs. Approx.) 445 470 495 520
Tractor Power (H.P) 30 - 35 35 - 45 45 - 50 50 - 60
